Bikes Enduro MEGAWATT CARBON Megawatt Carbon Pro 297
The assembly of the product may differ from the photo. Be sure to check out the specifications.*

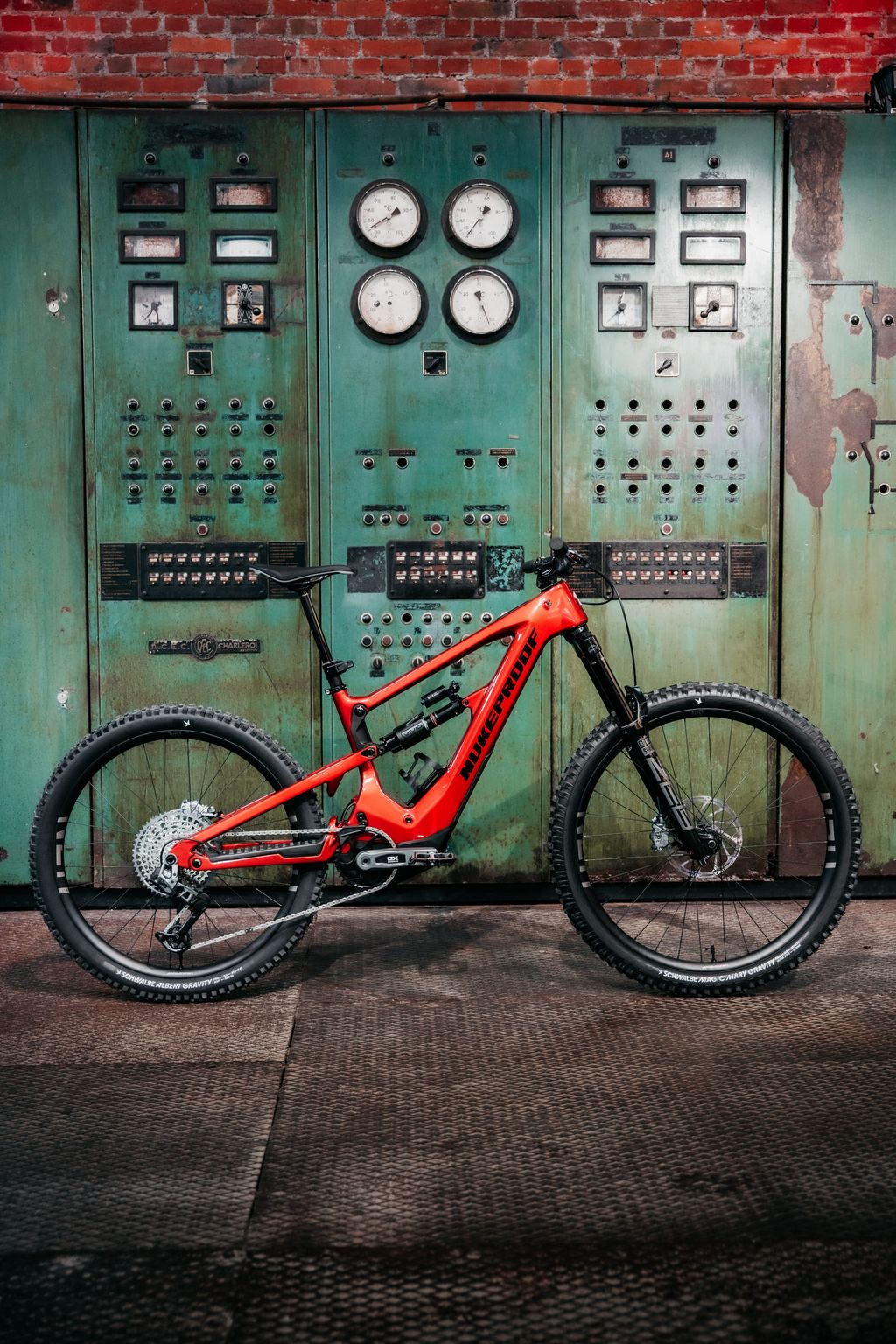

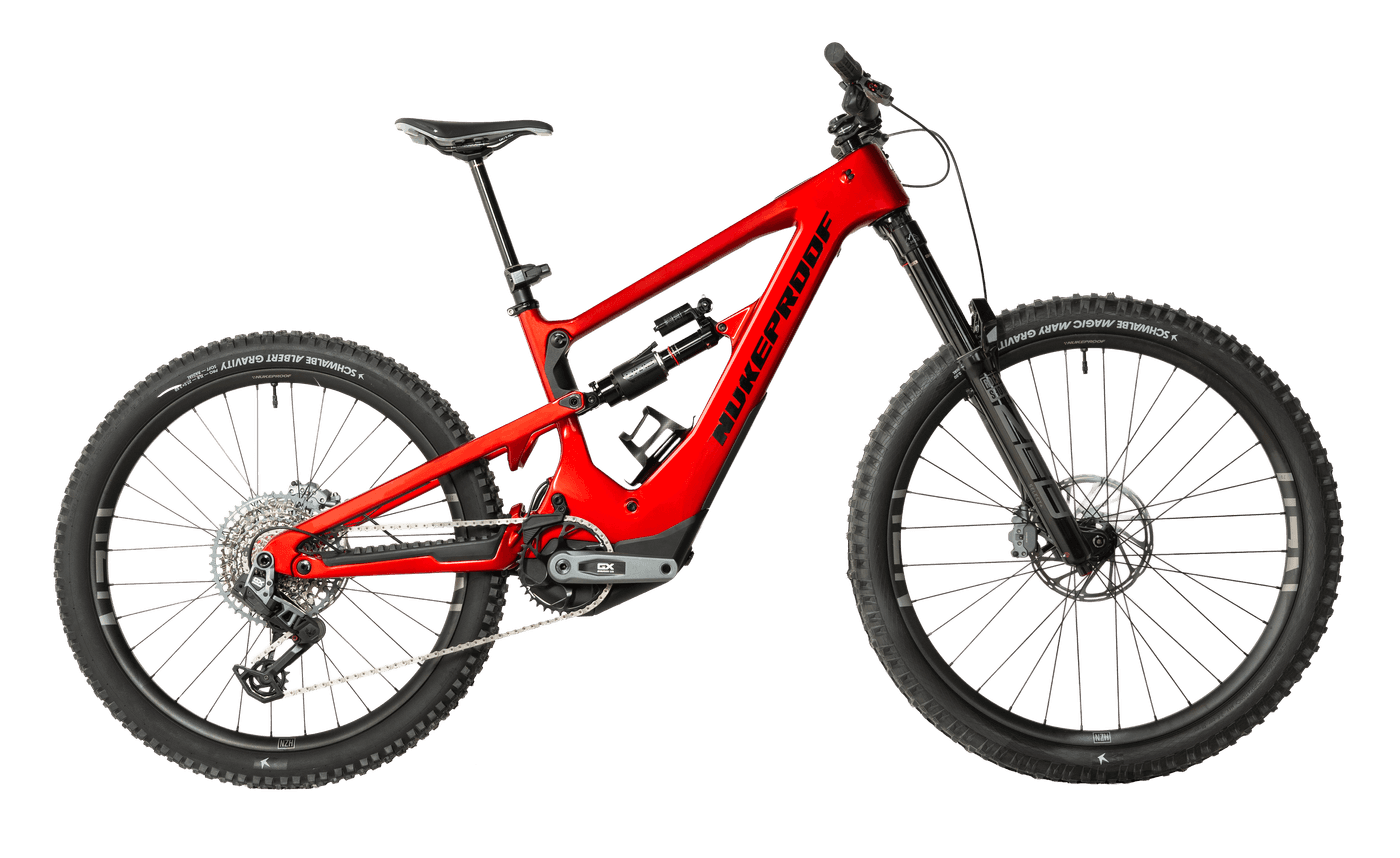

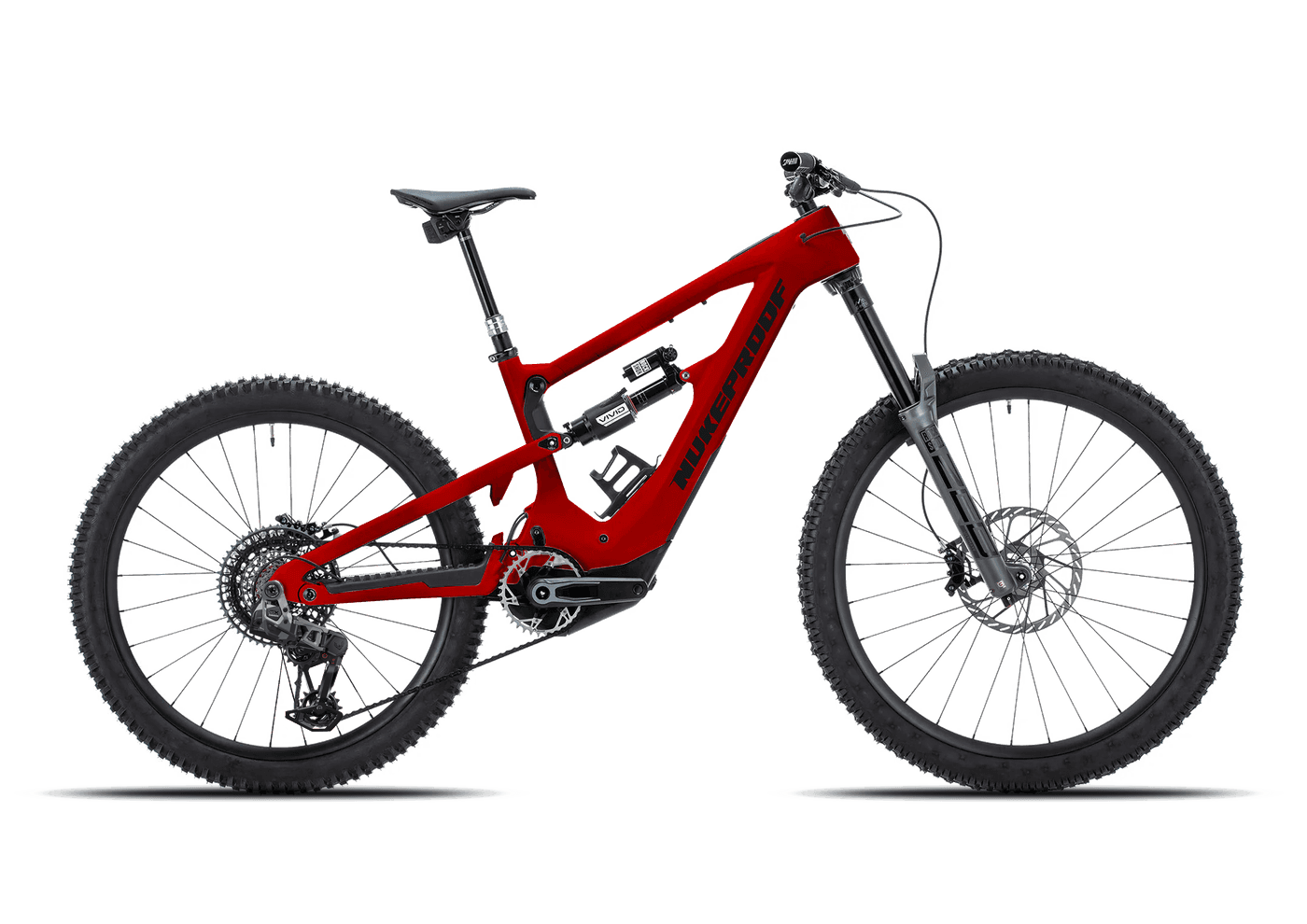

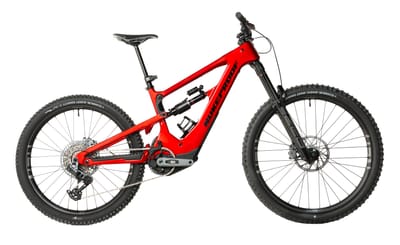

Megawatt Carbon Pro 297

Megawatt 297 Pro T-GX MWC01As(M)

  • S
  • M
  • L
  • XL
  • XXL
What is my size?
£7,399.00
Checkout is not available in your country. Contact your local dealer to order.

Optimized geometry and suspension kinematics

Advanced carbon frame construction

SRAM Eagle Powertrain

About Megawatt Carbon Pro 297

The Megawatt Carbon is a mixed-wheel, full-carbon E-Enduro bike built on Nukeproof’s legendary race-winning Mega platform, delivering 170mm of travel front and rear.

Refined over a decade, it’s a bike that’s poppy yet stable, high-tech yet simple — built for riders who want serious performance without compromise.

Developed over two years in collaboration with SRAM and the Eagle Powertrain, the Megawatt Carbon integrates SRAM’s Eagle AXS Transmission with a revolutionary new drive system. The result? A perfectly tuned e-bike that utilises SRAM's AXS ecosystem providing complete integration and offering our trademark Nukeproof ride experience — fast, fun, and built to send.

Megawatt Carbon Pro 297

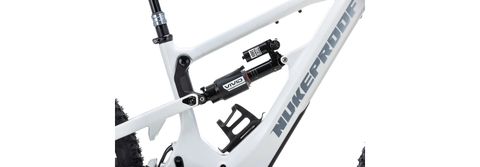

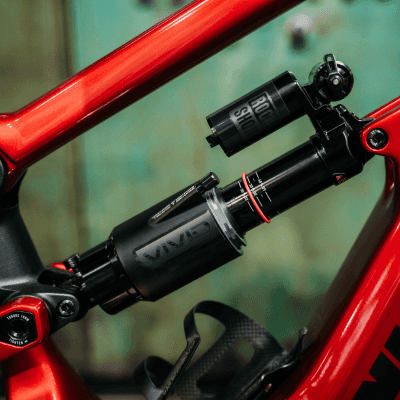

Optimized geometry and suspension kinematics

The Megawatt Carbon’s suspension is tuned for a precise balance of stability, traction and playfulness on rough trails. Based on the proven Mega platform, the rear linkage has been refined to keep small bump sensitivity while adding supportive mid stroke and end stroke performance for big impacts and steep descents. Paired with race influenced geometry, the bike feels both planted and agile. A slack head angle and optimized reach build confidence at speed, while a short chainstay and a steep seat tube produce a lively and responsive feel when climbing or navigating technical terrain. With 170 mm of travel front and rear, the suspension and geometry work together to deliver a bike that is playful yet composed, encouraging riders to push harder with confidence on technical trails and high speed descents.

Optimized geometry and suspension kinematics

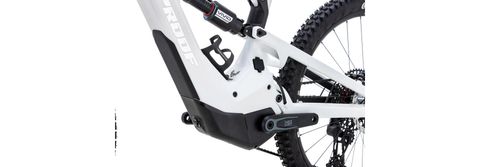

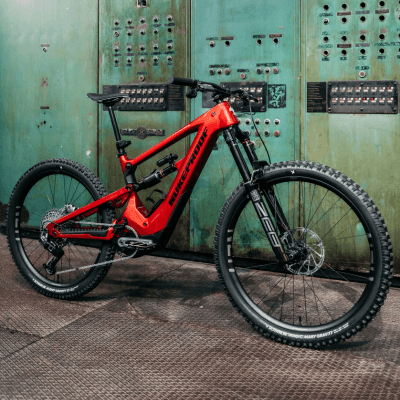

Advanced carbon frame construction

Developed over two years on the world’s toughest tracks, the Megawatt Carbon reflects extensive rider feedback, engineering refinement and real world race data. In collaboration with the Nukeproof SRAM Factory Racing and SRAM BlackBox teams during the E Enduro World Series, every aspect of the frame was validated at race pace before entering production. Built from high modulus carbon fibre, the chassis is engineered to balance stiffness, compliance and strength. Layups and tube profiles are tuned to work with the power and torque of the SRAM Eagle Powertrain, delivering a ride that feels planted and precise on demanding terrain.

Advanced carbon frame construction

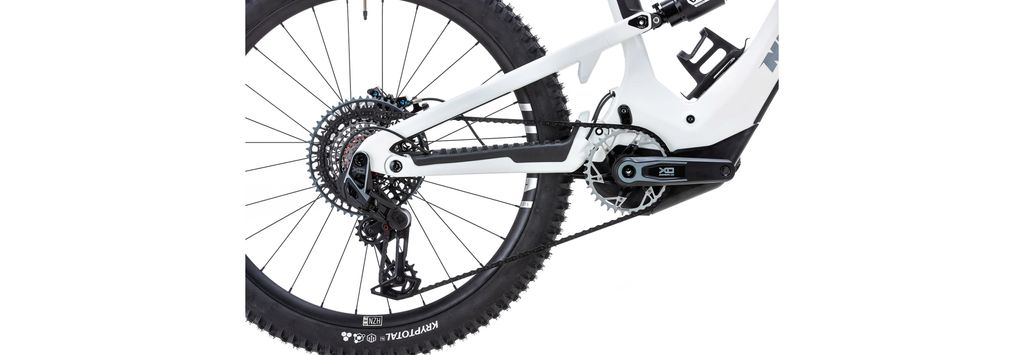

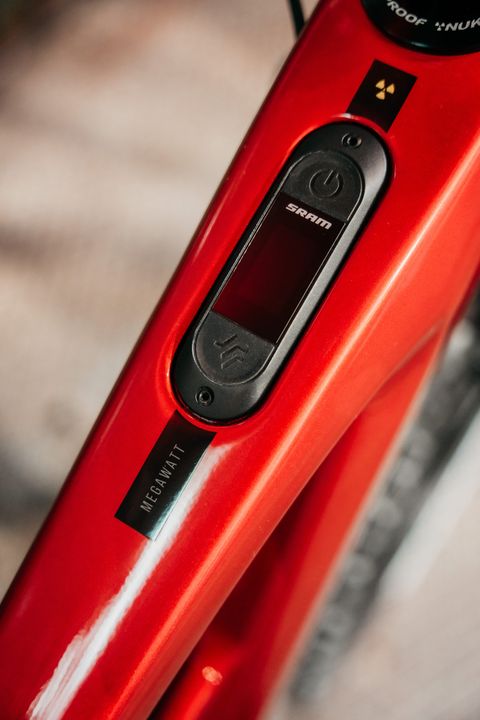

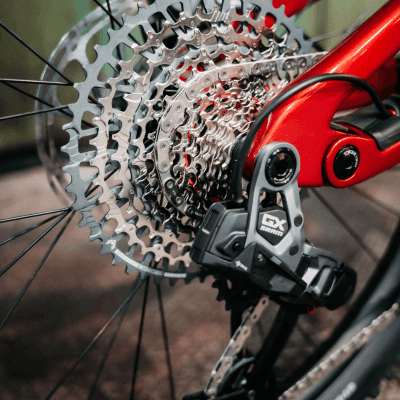

SRAM Eagle Powertrain

At the core of the Megawatt Carbon is the SRAM Eagle Powertrain, a first of its kind integrated e bike system that combines the motor, Eagle AXS transmission and AXS wireless shifting in one package. With 90 Nm of torque and a 720 Wh battery, it delivers smooth, powerful and precise assistance whether climbing steep trails or riding fast through technical descents. The system also introduces Autoshift and Coastshift. Autoshift selects the optimal gear in the background so the rider can focus on the trail, while Coastshift allows shifting without pedalling to avoid harsh shifts when the terrain changes suddenly.

SRAM Eagle Powertrain

Specifications

  • Frame
    Nukeproof Megawatt 297 Carbon, 170mm Travel, custom designed ultra-strong monocoque UD Carbon Fibre frame, internal battery, internally piped cable routing, Max Bearings, Boost 148mm rear axle spacingand 3D contoured Rubber frame protection.
  • Material
    Carbon
  • Frame Level
    Elite Series
  • Bike Weight
    23.83kg/52.4lbs (Tubeless)
  • Fork

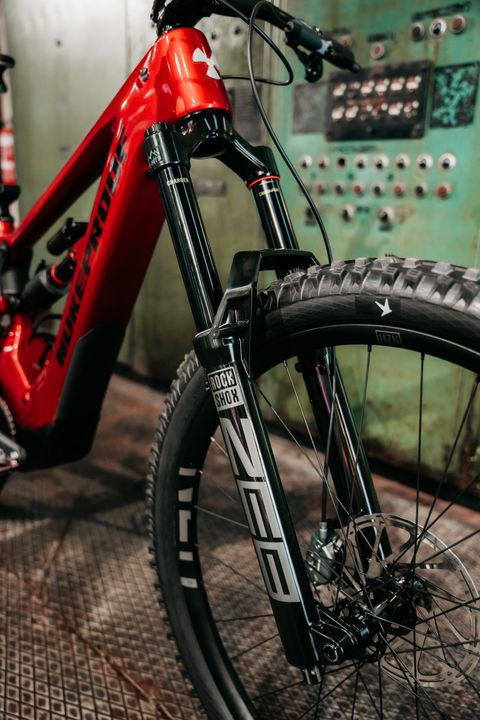

    RockShox Zeb Select +, Charger 3.1 RC2, 29" Boost 15x110mm Maxle Stealth, Debonair, 170mm, Gloss Black, 44mm Offset
  • Rear Shock
    RockShox Vivid Select+ Air, 230X65mm, Bearing End, Custom Tuned with 1 Token, Rebound 25, Compression 30, 4x Lockout. Externally Adjustable Bottom Out
  • Drive Unit
    SRAM Eagle Powertrain Drive Unit, 680W Peak Power, 90NM Torque
  • Battery
    SRAM Eagle Powertrain Full Size, 720WH
  • Electric Charger
    Eagle Powertrain Charger with EU/UK Plug Supplied
  • Groupset
    Sram Transmission GX
  • Rear Derailleur
    SRAM Transmission GX Rear Derailleur
  • Crankset
    Sram GX Eagle E-MTB, 155mm, 36T
  • Cassette
    SRAM GX CS1275 T-Type, 12-Speed, 10-52T
  • Brake Type
    Post Mount

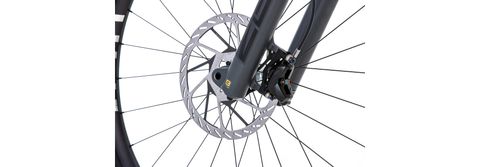

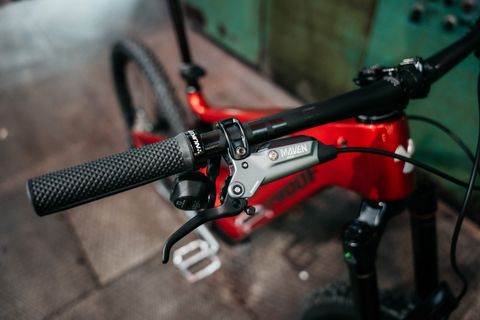

  • Front Brake
    SRAM Maven Bronze, Organic pads
  • Rear Brake
    SRAM Maven Bronze, Organic pads
  • Shifter
    SRAM AXS POD Left & Right Bridge MMX
  • Rotors
    F: SRAM Centerline 2.0 200mm Rounded, R: SRAM Centerline 2.0 200mm Rounded
  • Chain
    SRAM GX T-Type, 12-Speed Eagle, Flattop, PowerLock, 120 Links
  • Chain Guide
    Nukeproof, supplied with frame
  • Wheelset
    Nukeproof Horizon V2. F: 29", 15x110mm Boost, R:27.5", XD Freehub, 148x12mm Boost
  • Tyres
    F: Schwalbe Magic Mary Evo, Gravity Pro Radial, TLR, 63-622 / 29x 2.5" Ultra Soft, R: Schwalbe Albert Evo, Gravity Pro Radial, TLR, 63-584 / 27.5x 2.5" Soft
  • Headset
    Nukeproof, sealed bearings, ZS56/28.6 – ZS66/46

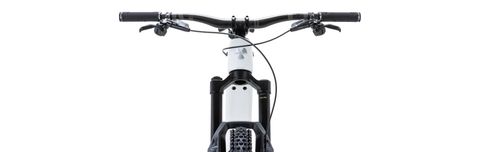

  • Handlebar
    Nukeproof Horizon Carbon V2, S/M: 12mm Rise Width - 780mm, L/XL/XXL: 25mm Rise Width - 800mm
  • Grips
    Nukeproof Neutron Single Lock On, Diameter - NP1 - 29.6mm, NP2 & NP3 - 31.8mm
  • Stem
    Nukeproof Horizon, 45mm, Black
  • Seatpost
    RockShox Reverb AXS, SM: 150mm, M: 175mm, L: 200mm, XL: 225mm, XXL: 250mm
  • Saddle
    Nukeproof Horizon Enduro, Crn/Ti Rails
  • Range
    Enduro

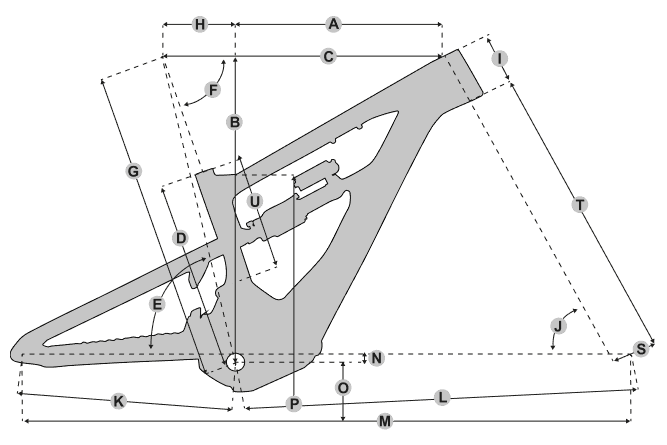

Geometry

What is my size?
SMALL MEDIUM LARGE X-LARGE XX-LARGE
A Reach 435 455 475 495 515
B Stack 624.29 633.25 642.19 651.14 660.09
C Effective top tube 573.4 595.39 611.5 633.4 655.31
D Seattube length 380 410 440 460 480
E Effective seattube angle 77.5° 77.5° 78° 78° 78°
F Actual seattube angle 71° 71° 72° 72° 72°
G Saddle height for saddle offset 650 700 750 800 850
H Saddle offset at saddle height 140.84 157.22 165.52 181.03 196.54
I Headtube length 100 110 120 130 140
J Headtube angle 63.5 63.5 63.5 63.5 63.5
K Chainstay length 447 447 447 447 447
L Front centre 778.23 802.69 827.16 851.62 876.08
M Wheelbase 1225.28 1249.74 1274.04 1298.51 1322.97
N Bottom bracket drop -30/-10 -30/-10 -30/-10 -30/-10 -30/-10
O Bottom bracket height 348.50 348.50 348.50 348.50 348.50
P Stand over height 737.33 737.33 742.87 742.87 748.19
Q Fork travel 170 170 170 170 170
R Trail 130.26 130.26 130.26 130.26 130.26
S Fork offset 44 44 44 44 44
T Axl te crown 582 582 582 582 582
U Maximum seatpost insert 216 248 275 305 340
