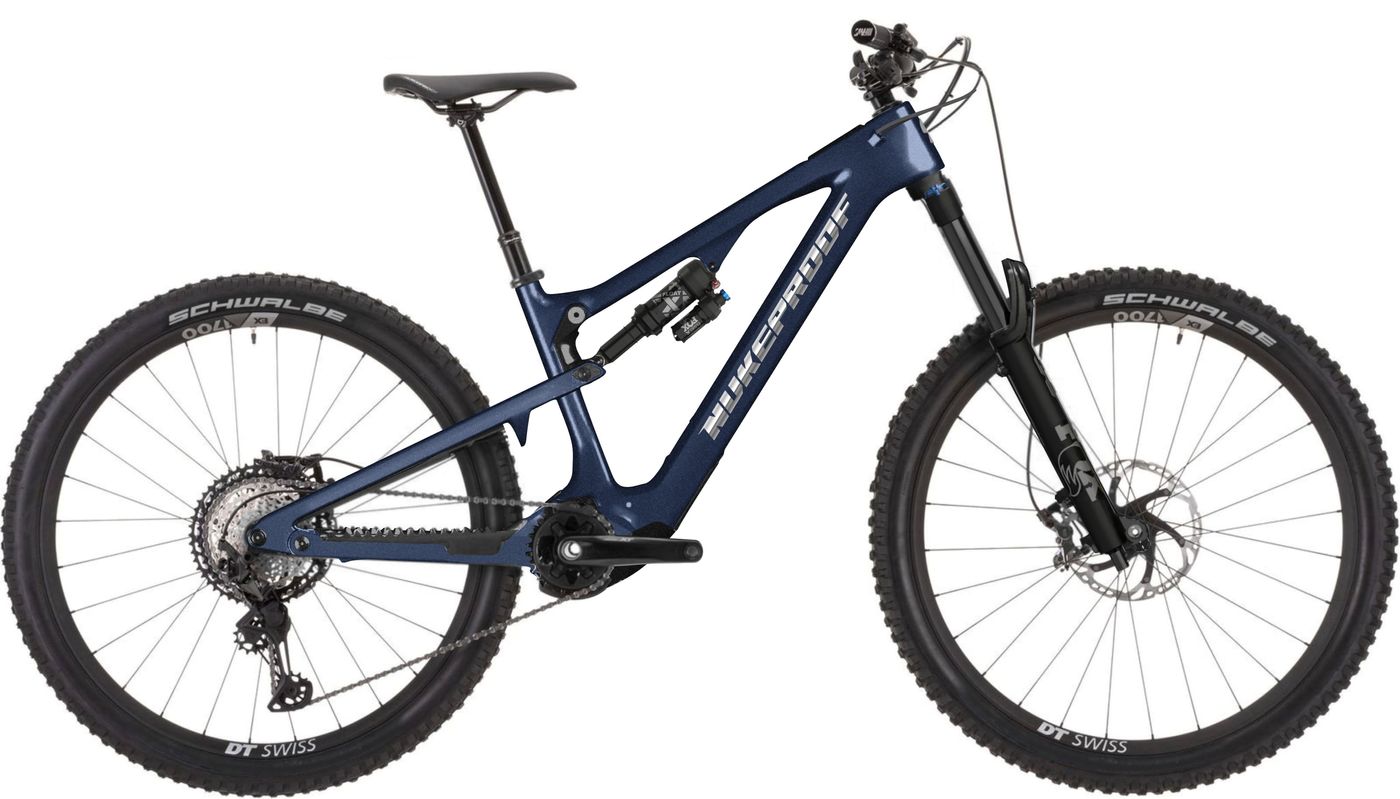

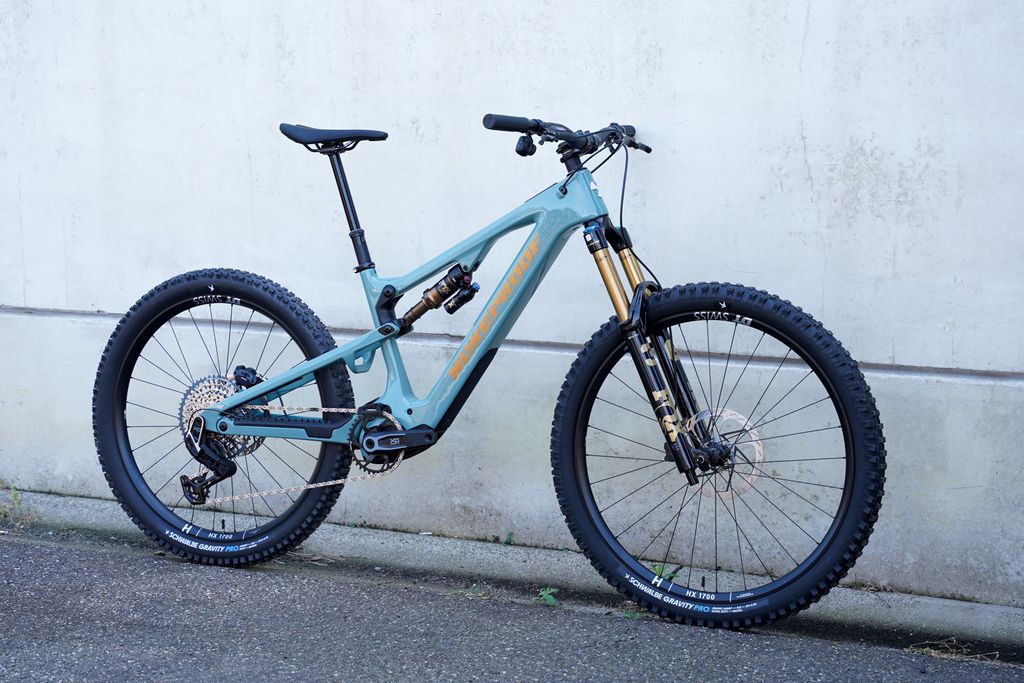

Kilowatt Carbon Expert

Kilowatt C 297 Expert EAGLE90 KWCEX27s(M)

  • S
  • M
  • L
  • XL
What is my size?
€7,499.00
Checkout is not available in your country. Contact your local dealer to order.

Avinox Power System

Rider-Focused Design

Progressive Suspension Platform

About Kilowatt Carbon Expert

The Kilowatt Carbon Expert is built around the new Avinox M2S motor producing up to 1300watts of peak power and a punchy 150nm of peak torque allowing you to fly up the climbs ready to attack the next descent.

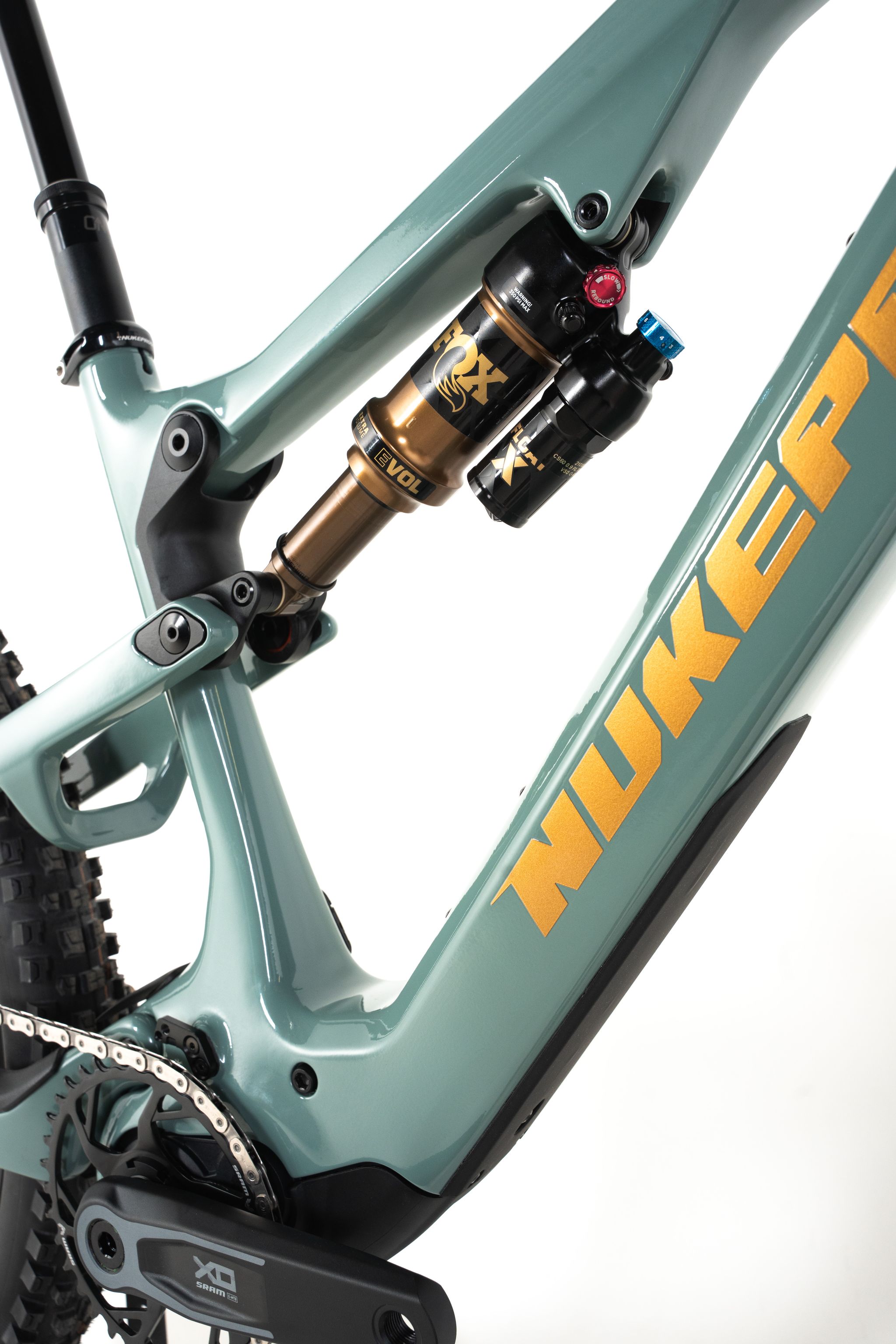

Featuring Nukeproof's signature four bar Horst Link suspension system, a platform that has undergone continuous refinement for over a decade. The result is a proven suspension design that delivers exceptional small bump sensitivity and traction at the start of the travel, while providing the mid stroke support demanded by hard charging riders.

Designed to combine the confidence inspiring ride characterises of our multi award-winning Mega, with the versatile adventure ready nature of the Reactor, the Kilowatt is equally at home riding your local trails at the weekend, or on the dreamy singletrack of your bucket list mountain destinations.

Blending playful handling with serious capability, Kilowatt is a true do-it-all machine - built to encourage exploration and maximise fun wherever and however you choose to ride.

Kilowatt Carbon Expert

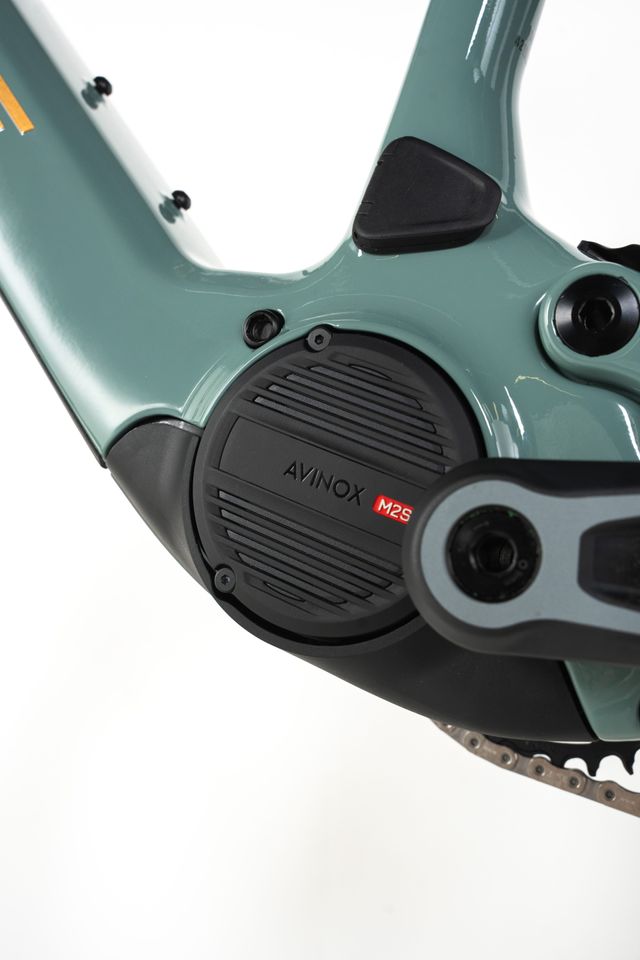

Avinox Power System

The Kilowatt is built around the Avinox e-bike system, delivering an exceptional balance of power, weight, and range. Thanks to its compact integration, the bike retains the ride feel of an analogue mountain bike, with power available whenever you need it.

Avinox Power System

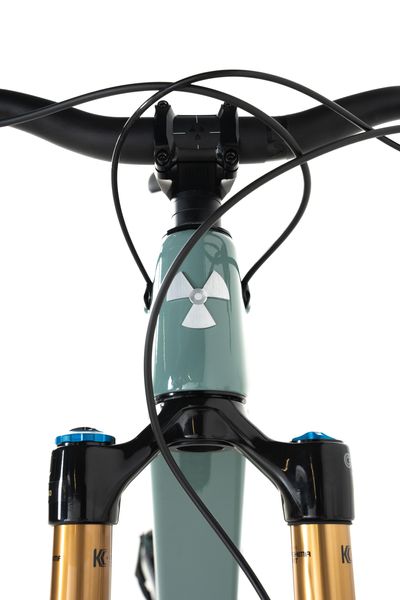

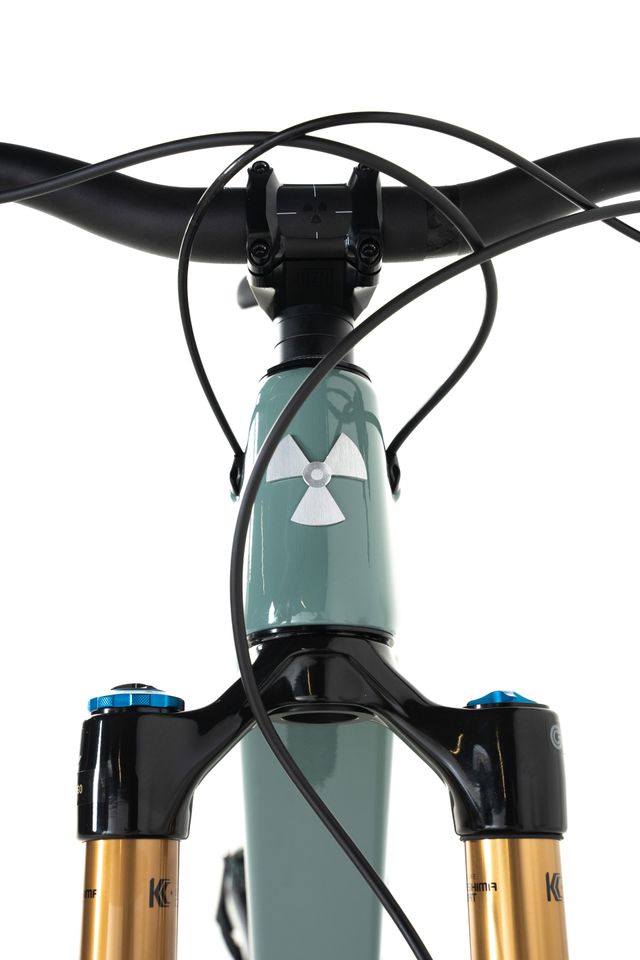

Rider-Focused Design

From tube-in-tube cable routing to the fully integrated battery, every detail of the Kilowatt is designed with the rider in mind. The result is a clean frame, easy maintenance, and a bike that looks as good as it rides.

Rider-Focused Design

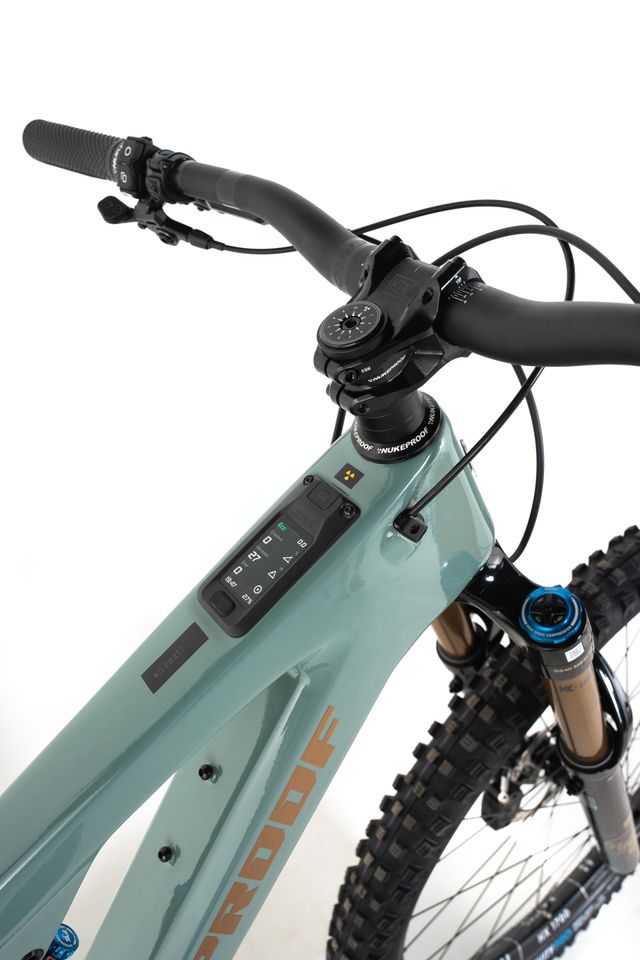

Progressive Suspension Platform

With 160 mm of front travel and 150 mm at the rear, the Kilowatt delivers maximum control on technical terrain. The signature single-piece suspension linkage increases stiffness and ensures a direct, predictable ride feel, even under heavy load.

Progressive Suspension Platform

Specifications

  • Frame
    Kilowatt C 7EA/size M/KWCEX27s
  • Fork
    Fox 36 Float 29 P-Se 160 GRIP Gloss BLA TA15/110
  • Rear Shock
    Fox Float X Rear Shock P-S 210
  • Drive Unit
    Avinox Drive Unit
  • Display
    Avinox DP100 Flat Colour Touch Screen Display
  • Electric Charger
    Avinox 12A Charger Power Cable Charger with EU/UK Plug Supplied
  • Tyres
    Schwalbe Albert Gravity Pro, TLR 63-584
  • Crank
    SRAM S1000 E-MTB 155mm ISIS M15 SE
  • Shifter
    Wireless Controller Left
  • Rear Derailleur
    SRAM Eagle 90 T-Type, 12-Speed
  • Chain
    SRAM GX Transmission 120 links
  • Cassette
    SRAM GX Eagle Transmission XS-1275 10-52T 12s
  • Chain Guide
    Chainguide Upper Kilowatt Carbon CAP M5x16.5
  • Front Brake
    Sram Maven Base, 4 piston, organic pads, Sram mineral oil
  • Rear Brake
    Sram Maven Base, 4 piston, organic pads, Sram mineral oil
  • Rotors
    SRAM PM to PM 20P-2 incl. bolts
  • Handlebar
    Nukeproof Horizon, Wide:780, Rise:25, Bore:31,8
  • Stem
    Nukeproof Neutron , 45mm
  • Saddle
    Nukeproof Horizon Enduro, Cro-Mo rails
  • Seatpost
    Tranz-X dropper post , 31.6x482mm , 170mm travel
  • Grips
    Nukeproof OE single clamp with waffle - 29.6mm diameter
  • Bike Weight
    TBC

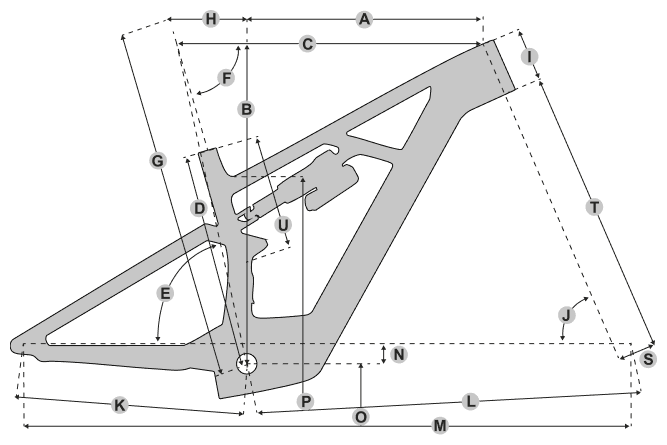

Geometry

What is my size?
SMALL MEDIUM LARGE X-LARGE
A Reach 435 460 480 500
B Stack 620.24 629.3 638.29 647.31
C Effective Top Tube Length 578.2 599.5 621.5 643.51
D Seattube Length 380 410 440 460
E Effective Seattube Angle (Low) 77° 77° 77.5° 77.5°
F Seattube Angle (Actual) - (Low) 70.5° 70.5° 71° 71°
G Saddle Height at Saddle Offset 650 700 750 800
H Saddle Offset at Saddle Height 146.4 164.4 174.2 191.8
I Headtube Length 100 110 120 130
J Headtube Angle 64 64 64 64
K Chainstay Length 450 450 450 450
L Front Centre 761.8 791.1 815.3 839.6
M Wheelbase 1209 1238.3 1262.7 1287
N Bottom Bracket Drop -37 -37 -37 -37
O Bottom Bracket Height 336 336 336 336
P Stand Over Height 745 750 755 760
Q Fork Travel 160 160 160 160
R Trail 132 132 132 132
S Fork Offset 44 44 44 44
T Axle to Crown 571 571 571 571
U Maximum Seatpost Insert 250 280 310 340
